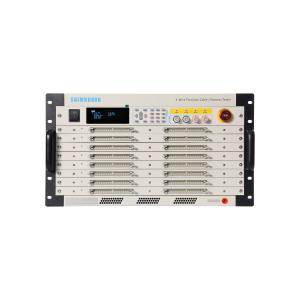

Wire Harness Tester Harness Continuity Tester 1024P / 512P
Applicable Typical Industry
Application
Features
Software Introduction
Specification
| Medium Voltage test | SAIMR6000 | |
| Test Mode | 4-wire or 2-wire (mixed test) | |
| Number of Points | 32/64/128/256…20480 points | |
| Test Project | Test Range | Test Accuracy |
| OS Test (Voltage 5V) | 2 kΩ-200 kΩ (optional 20 kΩ -1000 kΩ) | ±5% |
| Insulation Resistance Test | 1MΩ-50GΩ (30V-2000V) | 1MΩ~100MΩ: ±2% |
| 100MΩ~ 1GΩ: ±5% | ||
| 1GΩ~ 50GΩ: ±10% | ||
| DC Resistance Test | 0.1Ω-1MΩ | <100k: ±1% |
| >100k: ±5% | ||
| Outer Four-wire DC Resistance Test | 10μΩ~100Ω | ±0.2%+5μΩ |
| Four-wire NTC Test (10k, 100k) | Temperature Judgment (accuracy 0.1°C) | Users can self-defined RT table for resistance and temperature judgment |
| Resistance Judgment (accuracy 10k: 1% 100k: 5%) | The resistance value can be judged according to the real -time temperature of the environment | |
| Comparison Judgment (accuracy 0.1°C) | Maximum resistance difference between tested and standard parts (Range) | |
| AC Hi-pot Test | 30V-2000V | ±3% |
| DC Hi-pot Test | 30V-3000V | ±3% |
| AC Leakage Current Test | 1μA-10mA | ±3% |
| DC Leakage Current Test | 0.1μA-5mA | ±3% |
| Dimensions (in mm) | 483*265*510 (1024P) | 483*183*510 (512P) |
| Maximum Weight (in kg) | 26 | 18 |
| Standard Configuration | User’s manual in U disk, power cord, network cable, port adapter board, test line, patrol pen. | |
| Optional Configuration | Insulation standard resistance, conduction standard resistance, industrial computer, desktop computer, monitor, mouse, keyboard, speaker. | |
